SERIES HORIZONTAL CORING DRILL

FUNCTIONS AND FEATURES:

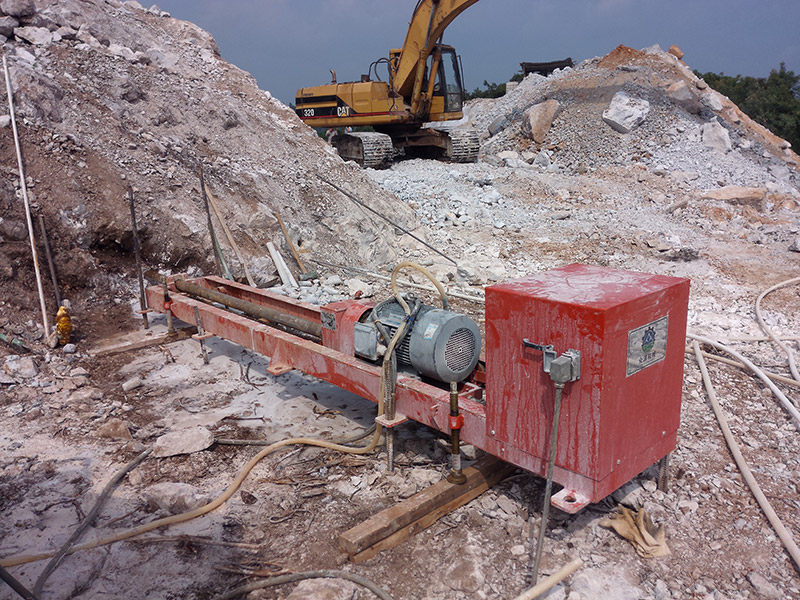

The machine is used for drilling horizontal hole for passing through the diamond wire saw during stone quarrying.It has the following features:high drilling efficiency,long life,easy hole-joining,high precision,etc.The walking motor and the inverter are used for automatic power feeding device.The real-time main motor current and the walking motor rotation speed are displayed on the control platform.The cycloidal gear reducer is used for manual power feeding device.The power control cable between the main machine and control platform is connected by the aviation plugs.The operating and installing of the machine are convenient.The controlmode adopts electrical automatic control principle to maximize the drilling speed and achieve the energy-saving and emission reduction effect.Meanwhile,it reduces the intensity of labor.

Description

FUNCTIONS AND FEATURES:


The machine is used for drilling horizontal hole for passing through the diamond wire saw during stone quarrying.It has the following features:high drilling efficiency,long life,easy hole-joining,high precision,etc.The walking motor and the inverter are used for automatic power feeding device.The real-time main motor current and the walking motor rotation speed are displayed on the control platform.The cycloidal gear reducer is used for manual power feeding device.The power control cable between the main machine and control platform is connected by the aviation plugs.The operating and installing of the machine are convenient.The controlmode adopts electrical automatic control principle to maximize the drilling speed and achieve the energy-saving and emission reduction effect.Meanwhile,it reduces the intensity of labor.

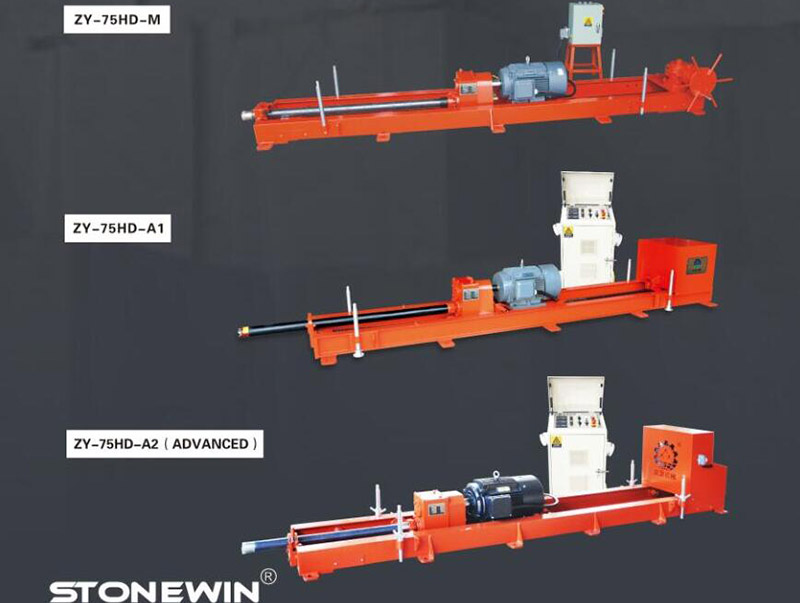

MODEL             UNITZY-75HD-MZY-75HD-A1ZY-75HD-A2
OPERATION MODE
ManualAutomaticAutomatic
MAIN MOTOR POWERKW15KW-4P15KW-4P15KW-6P
DIAMETER OF DRILL HOLEMMɸ75
ɸ75   ɸ75
MAX.DEPTH OF DRILL HOLE(M)303030
SPEED OF DRILLING(M/H)3-53-53-5
MIN.WATER-SUPPLY PRESSURE(MPa)0.10.10.1
SINGLE FEEDING DISTANCE(M)1.51.51.5
POWER FEEDING DEVICE
Speed   reducerStepless   speed controlled by 2 invertersStepless   speed controlled by 2 inverters
DRILLING DIRECTION
HorizontalHorizontalHorizontal
NET WEIGHT(KG)7008501000
