FUNCTIONS AND FEATURES:

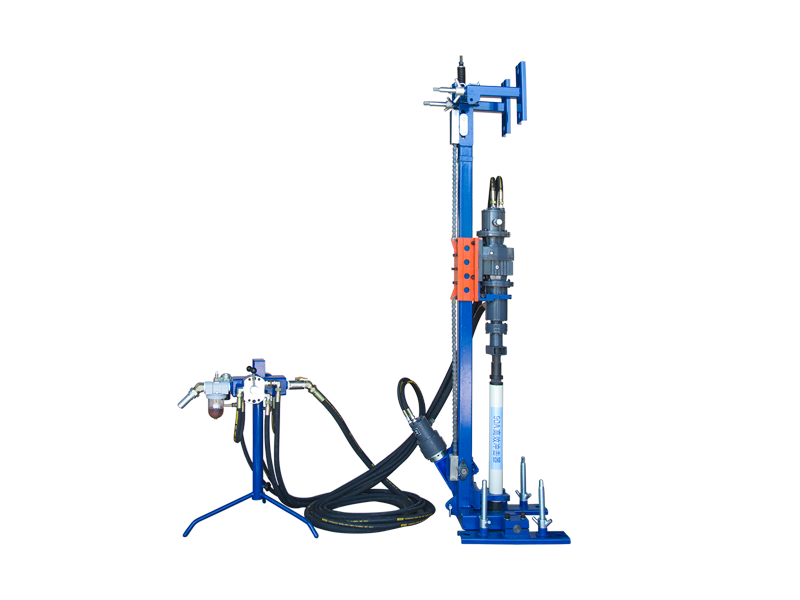

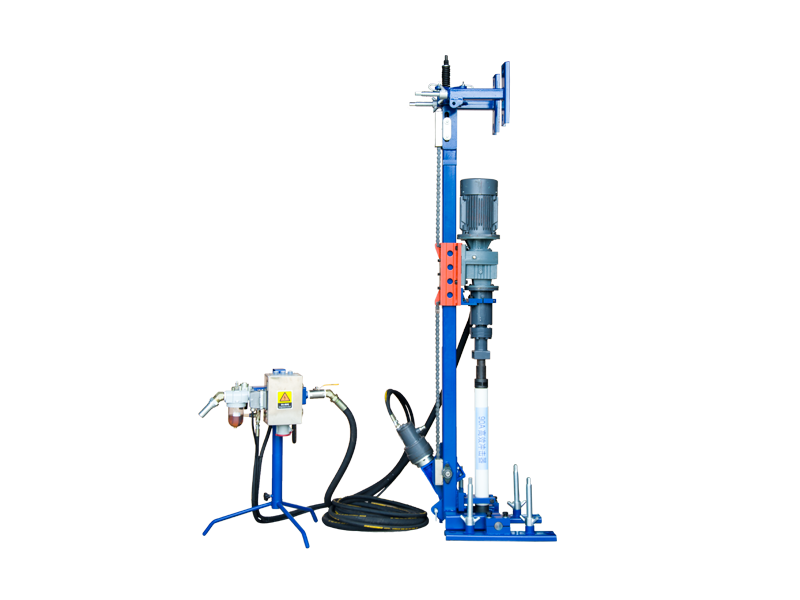

The DTH drilling machine is used for drilling large diameter horizontal, vertical and slant holes during stone quarrying. It is necessary assistive equipment to wire saw machine during the stone quarrying.The machine is controlled jointly by electric motor and compressed air motor. And the pneumatic units are high quality standard. The machine has the following features:low compressed-air consumption,high drilling efficiency, light in weight, easily operating and installing,etc. The particular screwing and discharging mechanism of the tube devices reduces the intensity of labor. And the machine has particular design for guiding drilling.FUNCTIONS AND FEATURES:
The DTH drilling machine is used for drilling large diameter horizontal, vertical and slant holes during stone quarrying. It is necessary assistive equipment to wire saw machine during the stone quarrying.The machine is controlled jointly by electric motor and compressed air motor. And the pneumatic units are high quality standard. The machine has the following features:low compressed-air consumption,high drilling efficiency, light in weight, easily operating and installing,etc. The particular screwing and discharging mechanism of the tube devices reduces the intensity of labor. And the machine has particular design for guiding drilling.
| MODEL | UNIT | ZY-100DTH-PE |
| DRIVING SYETEM | KW | 3.0KW ELECTRIC MOTOR /1.5KW AIR MOTOR |
| DIAMETER OF DRILL HOLE | （MM） | 90 |
| MAX. DEPTH OF DRILL HOLE | (M) | 30 |
| SPEED OF DRILLING | (M/H) | 6-8 |
| MIN. AIR PRESSURE | (MPa) | 0.6-0.7 |
| AIR CONSUMPTION | (M³/MIN) | 7-9 |
| SINGLE FEEDING DISTANCE | (M) | 1 |
| DRILLING DIRECTION | AND DIRECTION | |
| NET WEIGHT | (KG) | 700 |
